MatchCalc RF Design Calculator

MatchCalc, our downloadable RF matching calculator, is designed to provide ideal component values for matching the impedance of a S1P or S2P file to a desired system or reference impedance.
Benefits
    Insertion loss/gain of S2P & S1P files

    Insertion loss/gain of S2P & S1P files

    Real-time optimization/tuning

    Real-time optimization/tuning

    Ability to create a match report in Word

    Ability to create a match report in Word

    Return loss and Impedance plots for input/output ports

    Return loss and Impedance plots for input/output ports

    Snap-shot feature to hold static plots

    Snap-shot feature to hold static plots

    Smith chart with 2X scaling

    Smith chart with 2X scaling

System Requirements

Windows 7 or later recommended

Need help?

If you need support with any of our advanced tools or want to share feedback, get in touch with us.

Email support

Start Your Design With MatchCalc

MatchCalc free, downloadable RF matching calculator.

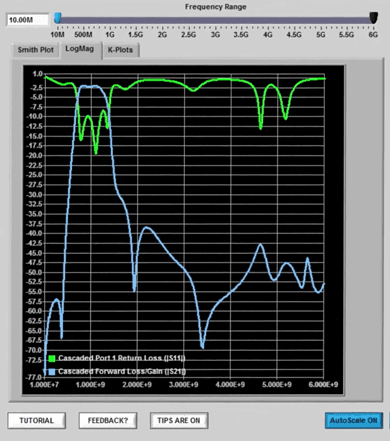

MatchCalc Tutorial

MatchCalc Tutorial

Qorvo Design Tools – Go-To Resources for Your Next RF Project

The communications market is continuously evolving, creating new and more complex products than ever before. The bulk of realizing these creative and innovative solutions rests on the engineer. Qorvo knows this and is here to help. One of our primary goals is supporting the engineering community – aiding designers in bringing their solutions to market quickly and successfully. To do so, we have created a Design Tools Library. The main purpose of this library of design tools is to equip you with resources to help streamline your design process and improve accuracy. All of our tools are free – some can be used online, while others are downloadable.
